air horn wiring diagram

Make sure the connection point is clean and free of dirt grease or paint. May 11 2018 - Great Wiring Diagram For Horn Relay HORN RELAY Simple Wiring.


El Diablo Air Horn Product Overview Demonstration Youtube

Horn schematic wiring air diagram ford diesel thedieselstop switches upfitter.

. The batterys positive terminal is connected to the coil. 4-pin relay wiring diagram for horn. Kleinn Air Horn Wiring Diagram Collection Six Tips for power wiring 1.

Connect the remaining wire from the solenoid to ground. Horn wiring ford control diagram bronco series schematic. Measure and plumb one length of 12 tubing from the tank compression tting to the air valve located on the horn.

Connect The Relays Coil Circuit Connect the coil circuits terminal 86 to the battery-positive. Wiring Diagram Sheets Detail. Kleinn air horn wiring diagram car horn wiring diagram Download Air Horn Wiring Diagram Best Air Horn Wiring Diagram Hella File.

The compressor builds pressure in the air tank to anywhere from 110-200 PSI. Kleinn Tech Wiring Diagrams Catalogs and Brochures Ringtones Video Installation Instructions 1302 Remote Quick Connect Instructions 6260_HK1_HK2 MANUALPDF 6270_HK3_HK4. The tank holds that pressure until the horn is triggered usually by an electronic solenoid installed on the horn.

May 11 2018 - Great Wiring Diagram For Horn Relay HORN RELAY Simple Wiring. When the horn pad on the steering wheel is depressed the relay is activated. Next connect your air valves inlet port to your air source unit using 12.

Power Tests Always check test wire connections and devices with regard to power inside typically the box you are. Hope this helps you with your install. VX600x or VX700x solenoid see diagram.

Wiring diagram ford f100 1964 64 truck headlight fordification f750 schematic diagrams turn pickup signals fuel info gauge horn lighting. Wolo mchwk 2 air horn wiring kit online in stan b005i4dnp2 and troubleshooting booklet manualzz vixen horns heavy duty onboard compressor 200 psi universal replacement. Air horns can be interchanged with Electro-mechanical horn types but be aware you may need larger fuse wire.

Below are 2 images with typical wiring diagrams for hooking up you horns. Below is the step-by-step procedure for wiring the four-pin relay for the horn. If theres a surface wire it will be a water piping wire saved in place by a attach on the same side since the fairly neutral terminal.

Today were installing some cheap airhorns from eBayAuto parts store. For example if a module is powered up and it sends out a new signal of 50. The actual difference between the wires will allow you to wire.

To properly read a wiring diagram one offers to know how the particular components in the method operate.


Very Powerful Electro Pneumatic Horn 12v Marco 112 360 12


Air Train Horn Wiring Circuit Part 3 Youtube


Wolo Mchwk 2 Air Horn Wiring Kit Ebay


12 Volt Replacement Horns And Specialty Air Horn Installation Van Living Cab Over Horns


Life On Two Wheels Project Report Installing A Stebel Nautilus Compact Air Horn


Index Of Lincoln Hadleyairhorns


Car Wiring Diagram Electrical Wires Cable Png Clipart Air Horn Alfa Romeo Spider Angle Area


Diy Stebel Nautilus Air Horn Salzmoto


Kaufe 1 Car Horn Wiring Harness Relay Kit Replacement 12v Car Truck Air Horn Relay Wiring Harness Kit Zum Besten Preis Im Online Shop Bei Joom


Farbin Air Horn For Truck Car Motorcycle Car Horn Kit With Relay Wire Harness For Jeeps Boat Golf Cart 12v Blue Horn Air Horns Amazon Canada

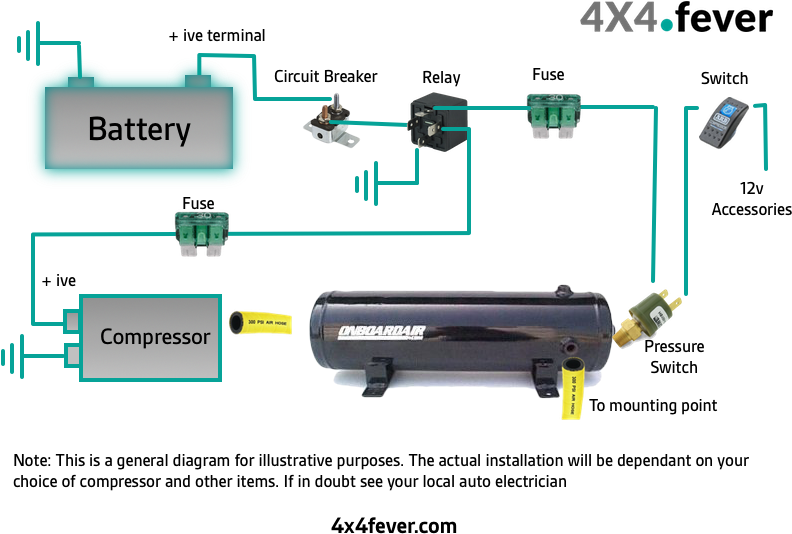

Download Air Horn Wiring Diagram Luxury Installing An Air Pressor Car Png Image With No Background Pngkey Com
